HMI Touch Screen Systems

Integrated HMI Solution for Commercial & Industrial Applications

Engineering-grade human-machine interface system combining a 7-inch capacitive touch screen with a dedicated control board. Designed for reliability in demanding environments including kiosks, industrial control panels, building automation, and assembly line interfaces.

Key Features

📱

Multi-Touch Display

Capacitive touch technology with multi-touch support and anti-glare surface

🔌

Versatile Connectivity

USB, FPC display interface, and multiple peripheral ports

⚙️

Modular Architecture

Flexible system design for custom integration and expansion

🏭

Industrial Grade

SMT components and robust design for continuous operation

Request Technical Documentation Get Quote

Technical Specifications

Display Module

Screen Size	7 inches (diagonal)
Touch Technology	Capacitive Multi-Touch
Aspect Ratio	16:9 Widescreen
Surface Treatment	Anti-glare, Industrial-grade
Display Connection	FPC (Flexible Printed Circuit)
Viewing Angle	Wide viewing angle design

Control Board

Architecture	Microcontroller-based control system
Component Type	SMT (Surface Mount Technology)
Connectivity	USB, General-purpose I/O ports
Power Management	Integrated power supply components
Communication	Multiple protocol support (configurable)
Expansion	Peripheral expansion capability

System Integration

Design	Modular, integrated system
Assembly	Display-board integration via FPC
Mounting	Multiple mounting options available
Operating Environment	Industrial and commercial settings
Durability	Designed for continuous operation
Customization	Custom enclosures and configurations available

Applications

Proven solutions across commercial and industrial equipment

☕

Coffee Machines

Intuitive touchscreen controls for brewing parameters, recipe management, and real-time operation monitoring in commercial coffee equipment.

🍦

Ice Cream Machines

Temperature control interfaces, production cycle monitoring, and maintenance alerts for automated ice cream dispensing systems.

💧

Water Purifiers

Filter status displays, water quality monitoring, and user-friendly operation panels for residential and commercial water purification systems.

🔥

Conveyor Ovens

Multi-zone temperature control, conveyor speed adjustment, and cooking profile management for high-throughput commercial ovens.

🍳

Fryers & Steamers

Precise cooking controls, timer management, and safety monitoring for professional kitchen fryers and steaming equipment.

🏠

Smart Appliances

Connected home and commercial appliances with touchscreen interfaces, remote control capabilities, and intelligent automation.

📡

IoT Devices

Edge computing devices, sensor hubs, and smart equipment requiring local HMI control combined with cloud connectivity.

System Architecture & Integration

Flexible Integration Design

The HMI system features a modular architecture enabling seamless integration into diverse equipment configurations. The display module connects to the control board via a flexible printed circuit (FPC), allowing for various mounting orientations and enclosure designs.

Key Design Benefits:

Modular Components: Separate display and control board modules allow for custom configurations
FPC Connection: Flexible cable design accommodates different assembly requirements
Peripheral Expansion: Multiple connection points support additional sensors and actuators
Custom Enclosures: System can be integrated into customer-specific industrial housings
Scalable Design: Architecture supports future upgrades and feature additions

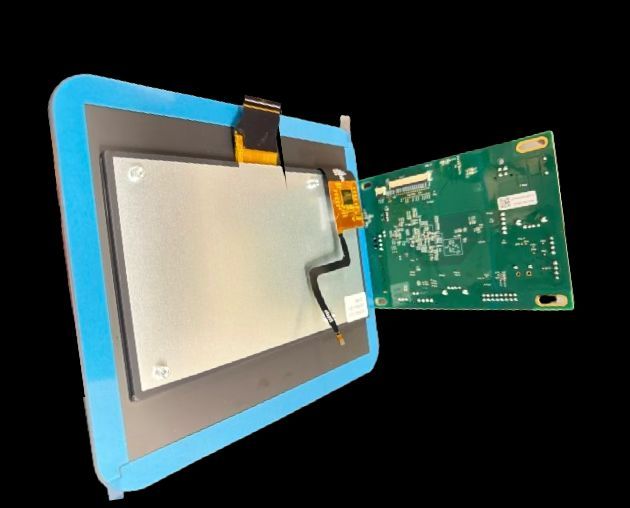

Modular system architecture showing display-to-board integration via FPC connection

OEM Engineering Support

Custom Configuration

Tailored hardware and firmware configuration to meet specific application requirements and performance criteria.

Integration Assistance

Technical support for integrating the HMI system into your equipment, including mechanical, electrical, and software guidance.

Enclosure Design

Collaboration on custom enclosure design and mounting solutions optimized for your application environment.

Testing & Validation

Comprehensive testing protocols and validation support to ensure system reliability and compliance.

Production Support

Manufacturing readiness assistance, including documentation, testing procedures, and quality control guidelines.

Lifecycle Management

Long-term product support, firmware updates, and component availability planning for extended product lifecycles.

HMI Touch Screen Control System
